I picked up a “new” chainsaw yesterday. It’s a 1982 Husqvarna 2100 CD. It 99cc’s of power 🙂
This is by far the biggest chainsaw I have. I bought it so we could do some chainsaw milling. I am still researching chainsaw mills but will have one sometime before spring.
I’ll update this page with more info, links and pics in the future.
I have links the IPL and service manual below. When I find the owner’s manual I link to it below also.
1982 Husqvarna 2100 CD Specs
|
MANUFACTURED BY:
|
HUSQVARNA VAPENFABRIKS AB | ||||||||||||||||
| HUSKVARNA, SWEDEN | |||||||||||||||||
|
Year introduced :
|
1975 | ||||||||||||||||
|
Year discontinued :
|
1987 | ||||||||||||||||
|
Engine displacement :
|
99cc (6.0 cu. in.) | ||||||||||||||||
|
Number of cylinders :
|
1 | ||||||||||||||||
|
Cylinder bore :
|
56mm (2.20 in.) | ||||||||||||||||
|
Piston stroke :
|
40mm (1.57 in.) | ||||||||||||||||
|
Cylinder type :
|
Aluminum with chrome plated bore | ||||||||||||||||
|
Intake method :
|
Piston ported | ||||||||||||||||
|
Advertised H.P.:
|
6.7/4.9 hk/kW | ||||||||||||||||
|
Weight :
|
11.1 kg with 60 cm bar & chain 24.5 lbs. with 24 in. bar & chain |
||||||||||||||||
|
Operator configuration :
|
One Man operation | ||||||||||||||||
|
Handlebar system :
|
Anti-vibration | ||||||||||||||||
|
Chain brake :
|
Mechanical | ||||||||||||||||
|
Clutch :
|
Centrifugal | ||||||||||||||||
|
Drive type :
|
Direct | ||||||||||||||||
|
Construction :
|
Die cast magnesium | ||||||||||||||||
|
Magneto type :
|
Electronic | ||||||||||||||||
|
Carburetor :
|
Tillotson HS-136B, C, D series | ||||||||||||||||
|
Major repair kit :
|
RK-23HS | ||||||||||||||||
|
Minor repair kit :
|
DG-5HS/T | ||||||||||||||||
|
Air filter system :
|
Nylon mesh cartridge | ||||||||||||||||
|
Starter type :
|
Husqvarna automatic rewind | ||||||||||||||||
|
OIL PUMP:
|
Automatic, adjustable | ||||||||||||||||
|
Operating rpm :
|
8,500 | ||||||||||||||||
|
Ignition timing :
|
Mark on stator should align with mark on crankcase | ||||||||||||||||
|
Breaker point setting :
|
none | ||||||||||||||||
|
Flywheel / coil air gap :
|
fixed, not adjustable | ||||||||||||||||
|
Spark plug type :
|
Bosch WS7F or Champion CJ7Y | ||||||||||||||||
|
Spark plug gap :
|
0.5mm (0.020 in.) | ||||||||||||||||
|
Crankshaft main bearings :
|
Ball | ||||||||||||||||
|
Fuel tank capacity :
|
1 liter (2.11 pints) | ||||||||||||||||
|
Fuel oil ratio :
|
50:1 | ||||||||||||||||
|
Recommended fuel octane :
|
Regular | ||||||||||||||||
|
Mix oil specification :
|
Two-stroke chain saw mix oil | ||||||||||||||||
|
Chain pitch :
|
3/8 in. or .404 in. | ||||||||||||||||
|

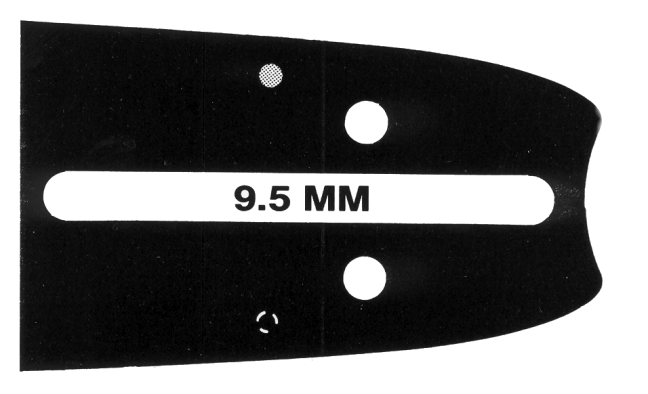

Bar mount pattern :
|
|
||||||||||||||||
|
Shortest bar :
|
40cm (16 in.) | ||||||||||||||||
|
Longest bar :
|
152cm (60 in.) | ||||||||||||||||
|
Color scheme :
|
Husqvarna Orange enamel | ||||||||||||||||
|
Illustrated Parts List :
|
1982 husqvarna 2100 IPL | ||||||||||||||||
|
Service Manual :
|
Husqvarna 2100 service manual | ||||||||||||||||
|
Owners Manual :
|
2101xp Owners manual (pretty much the same saw) |
